Vakaros

ATLAS 2

ATLAS 2

$1,700.00 AUD
$1,700.00 AUD
Sale Sold out
GST Included. Shipping calculated at checkout.

*NEW STOCK COMING SOON. Please contact us if you are interested and we will let you know as soon as we get them.

Equip your boat with industry leading L1+L5 GNSS GPS accuracy, beautiful high-contrast displays, and more. The Atlas 2 is the best tool to supercharge your sailing experience.

In the box:

  • Atlas 2
  • Mount
  • Qi Charging pad
  • Carrying case

Out of stock
View full details

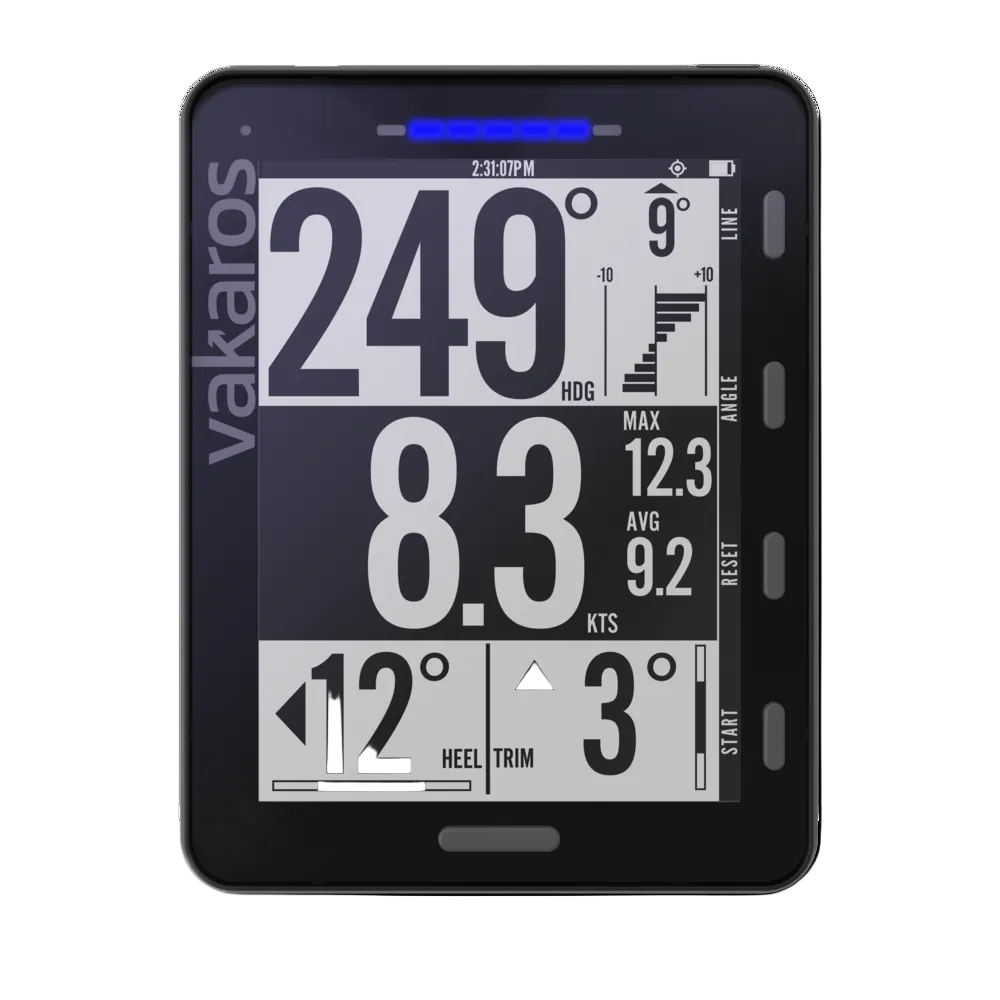

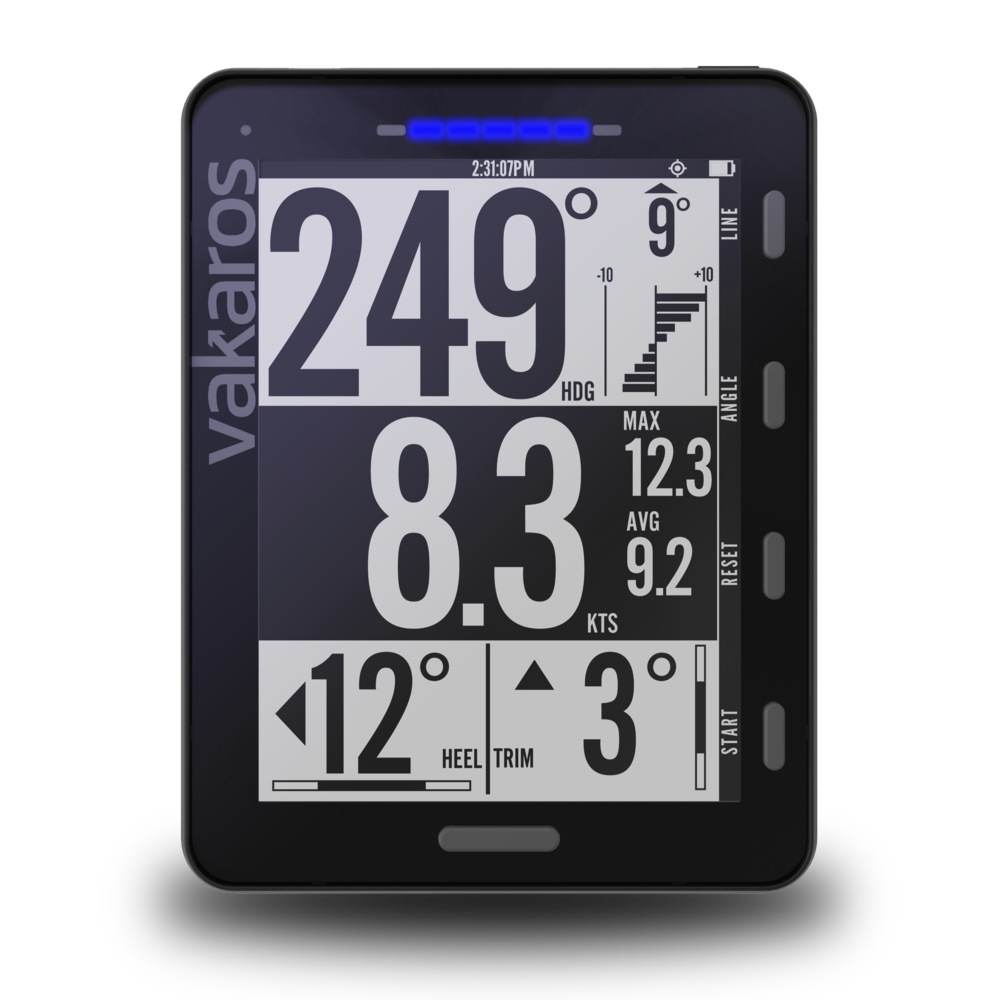

A MAGNETIC COMPASS THAT KNOWS WHERE IT'S GOING

Atlas 2 takes compass performance to a new level. The state-of-the-art magnetic sensor is 4 times more sensitive and capable of resolving heading changes as small as 0.1°. An advanced motion fusion algorithm and adjustable damping keep the compass steady—even in the roughest conditions. Because if your compass doesn’t know where you’re heading, everything else it tells you is wrong.

Gyro Stabilization

Unmatched 0.1° heading resolution

Motion fusion at 50 Hz

Reference angles so you never miss a shift

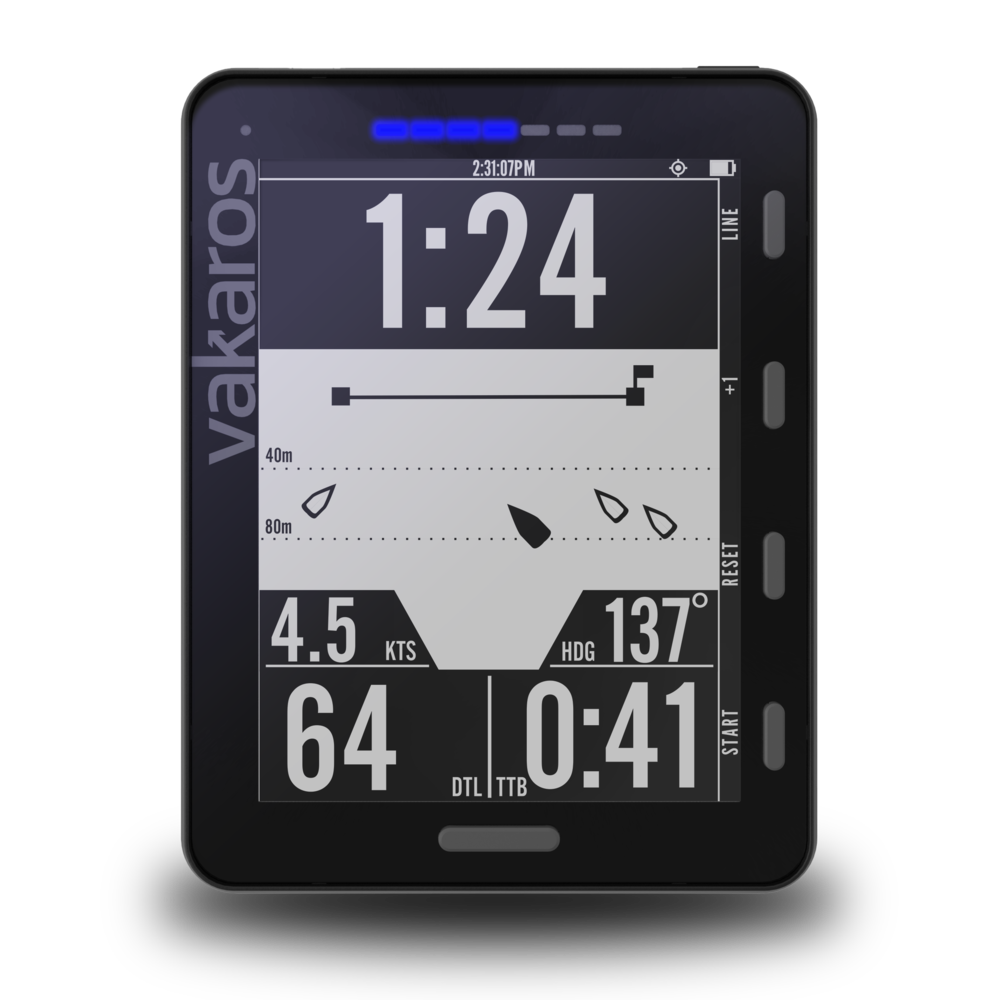

WIN THE START. EXTEND.

If you win the start, you control the fleet. It’s why we refined every aspect of starting for Atlas 2.

State-of-the-art sensors. Sophisticated algorithms that give numbers you can trust:distance and time-to-line.

Starting screens deliver the situational awareness you need to get to the line on-time and at full speed. But, don’t just take our word for it; ask any number of top pros & World Champions. They’ll tell you the same thing—Vakaros delivers starts that help them win.

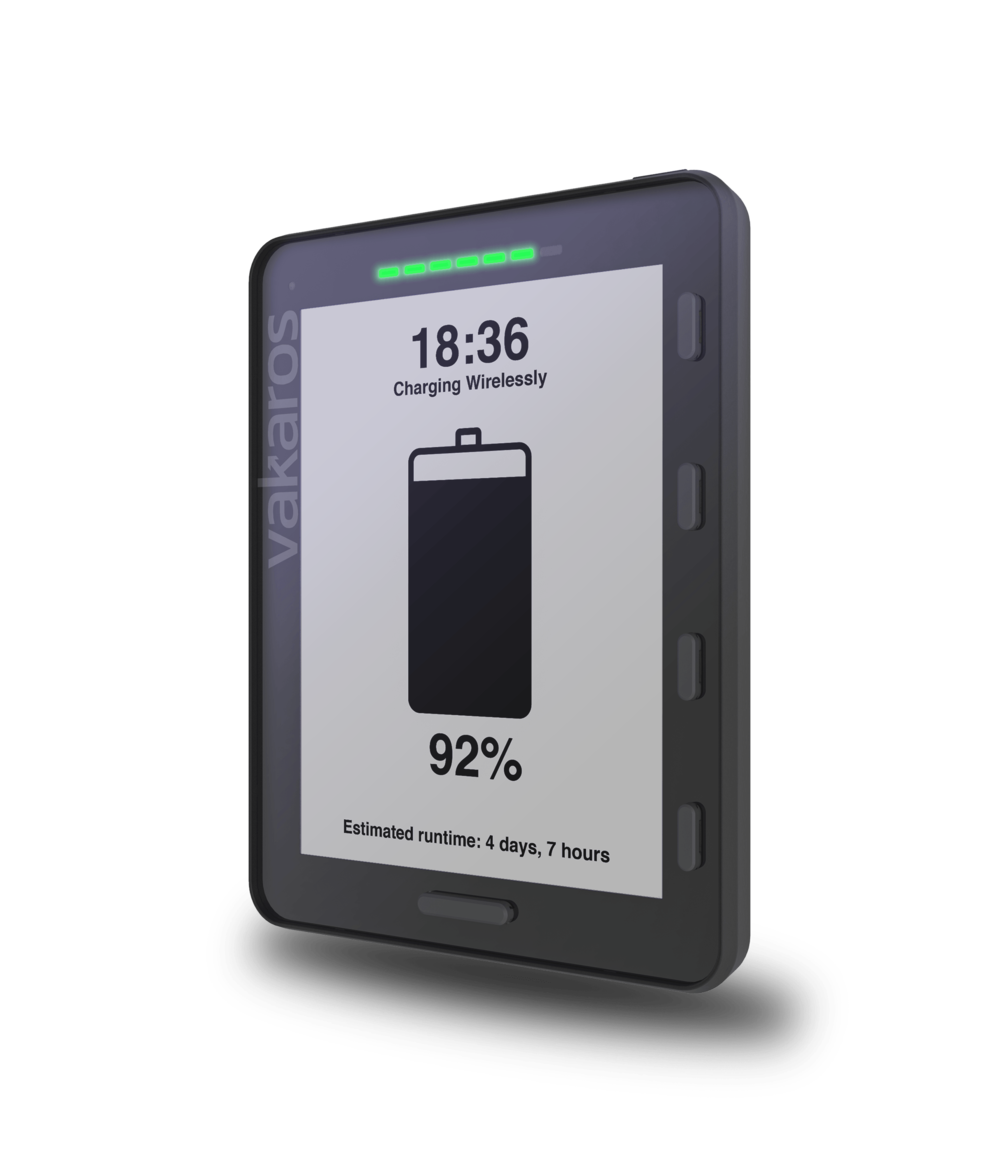

100 HOURS OF BATTERY, RECHARGABLE WITHOUT WIRES

A powerful 72 channel, 25Hz multi-constellation GPS receiver combined with a 100Hz solid-state 6-axis inertial measurement unit (IMU) and a patented high-precision 3-axis geomagnetic sensor gives you accurate distance, speed and heading information with zero lag time.

TECH SPECS

Sensors

  • 25 Hz L1+L5 dual-band, multi-constellation GNSS receiver
  • 3-axis magnetometer
  • 3-axis gyroscope
  • 3-axis accelerometer
  • Ambient light sensor
  • Temperature sensor

Core Measurements

  • Position
  • Velocity
  • Heading
  • Heel
  • Pitch
  • Data logging at 10 Hz

Display

  • High contrast, sunlight-readable
  • 160 degree viewing cone
  • 4.4" transflective LCD screen
  • 320x240 pixel resolution, 91 ppi
  • Red backlight
  • Digits up to 90 mm height (landscape), 40 mm height (2 metrics, portrait mode)
  • Optically bonded 1.1 mm Gorilla Glass
  • Multi-layer anti-reflective (AR) coating
  • Water-shedding hydrophobic coating
  • RGB LED array

Battery

  • Run time: 100+ hours
  • Integrated 4600 mAh rechargeable lithium-ion battery
  • Qi-compatible wireless charging

Data Logging

  • 256 MB integrated storage
  • 100+ hours, depending on logging rate
  • Log at 2, 5, or 10Hz

Functions

  • Distance-to-line
  • Time-to-line
  • Time-to-burn
  • Countdown timer

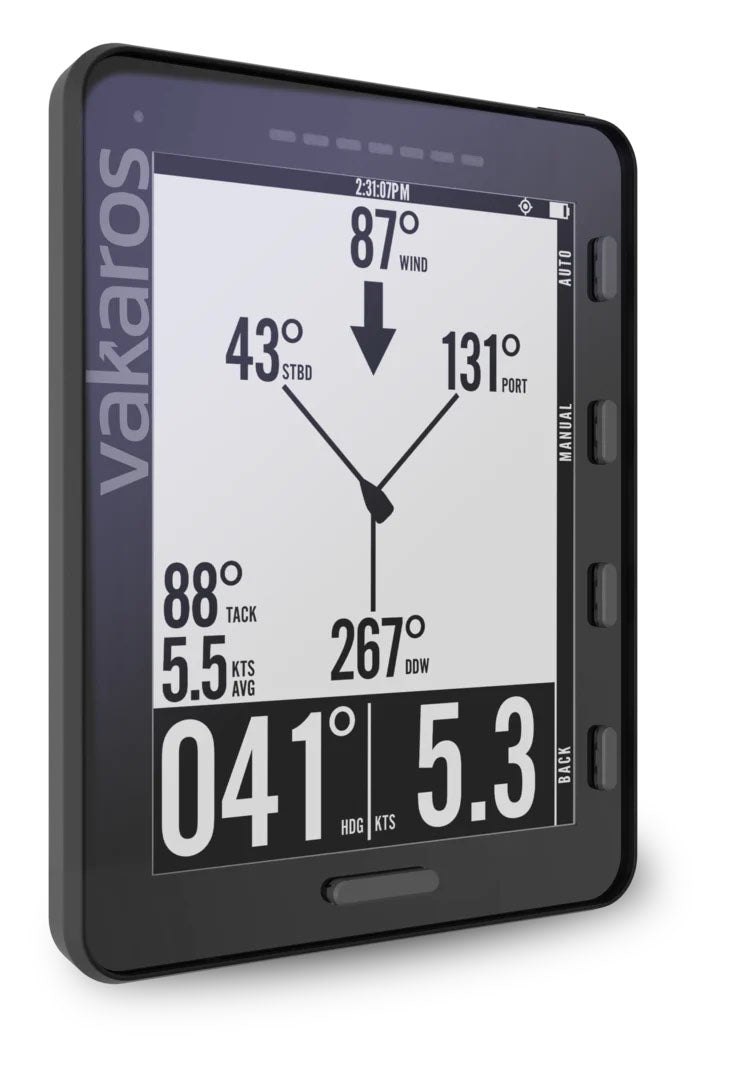

  • Shift tracking
  • Stripchart view
  • VMG
